Royal W 54 - tilt and turn

Drawing no.

Description

RS - alu

LS -alu

1

Stay arm 300 (approx. 30 cm long)

213814

213813

Stay arm 400 (approx. 41.5 cm long)

213700

213699

Stay arm 600 (approx. 63 cm long)

213704

213703

2

Screw

3

Corner hinge

276060 was: 213818

276059 was 213817

4

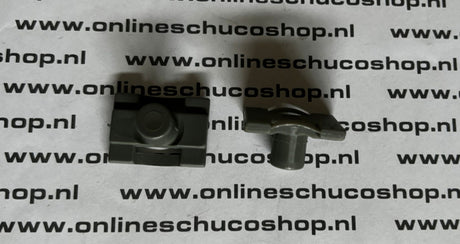

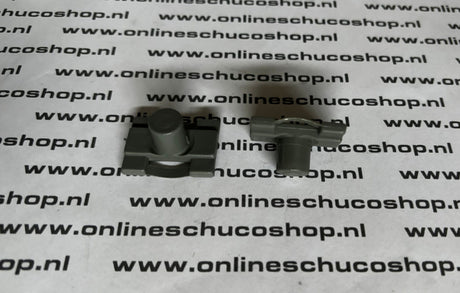

Ramp block

208302

208301

5

6

Finger bolt

207936

207935

7

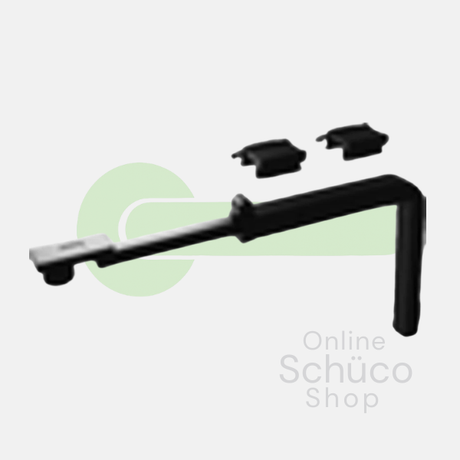

Corner connector

213714

213713

8

Clamping piece

207227 (no longer available)

9

Corner connector hinge side

213715

10

11

2^nd stay arm

213712
No longer available

213711
No longer available

12

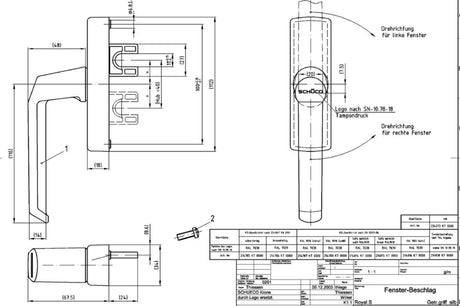

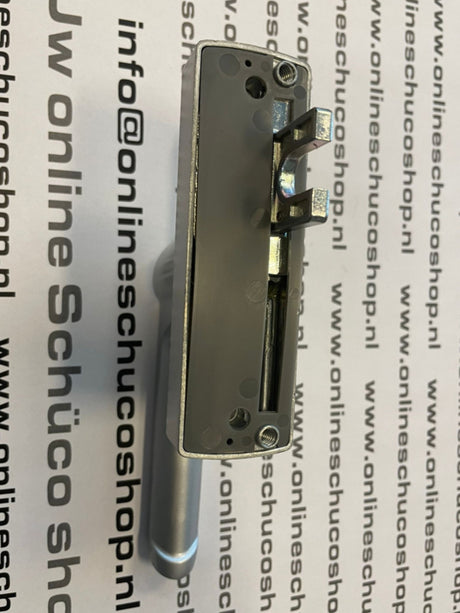

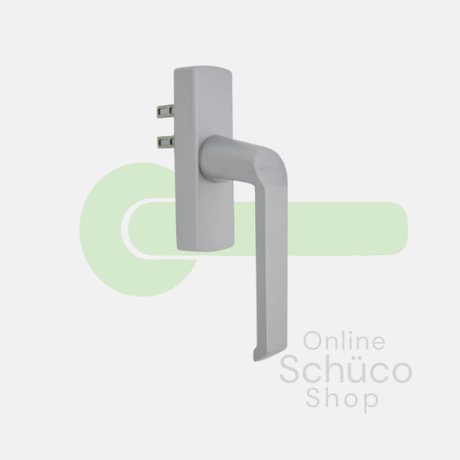

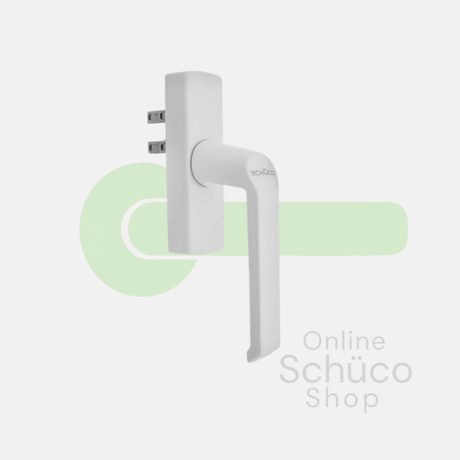

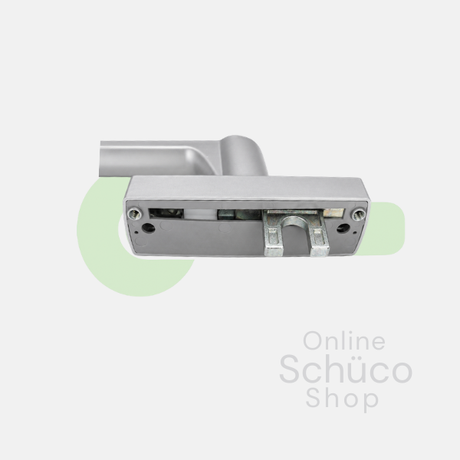

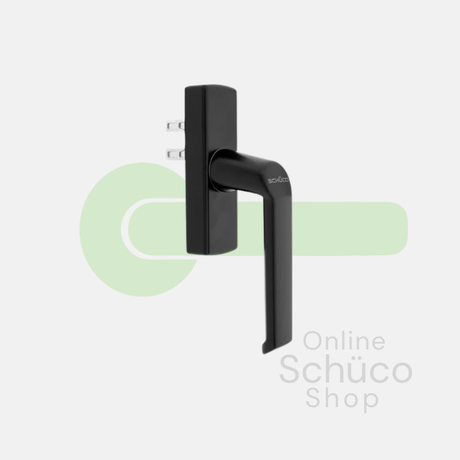

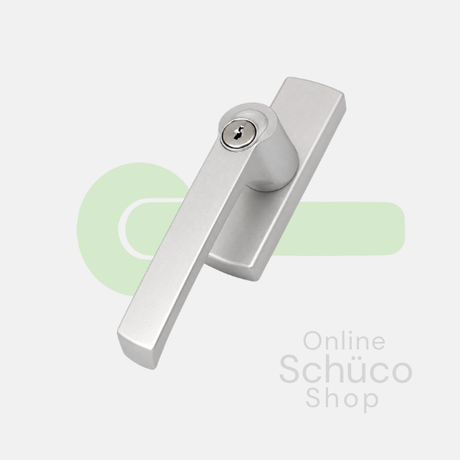

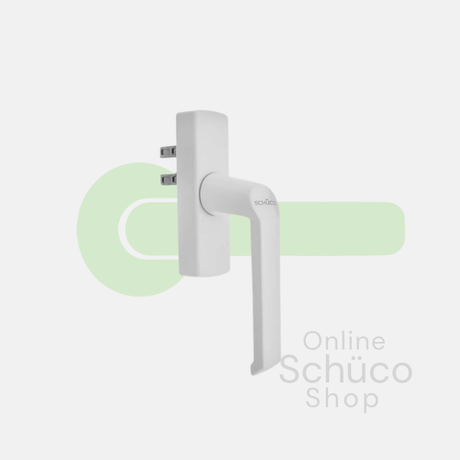

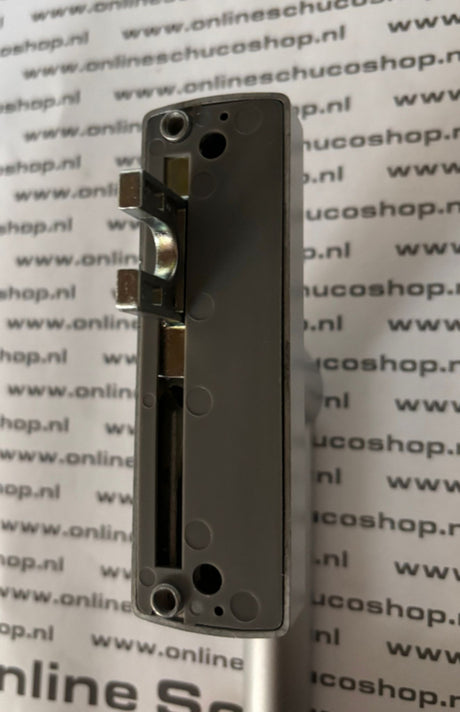

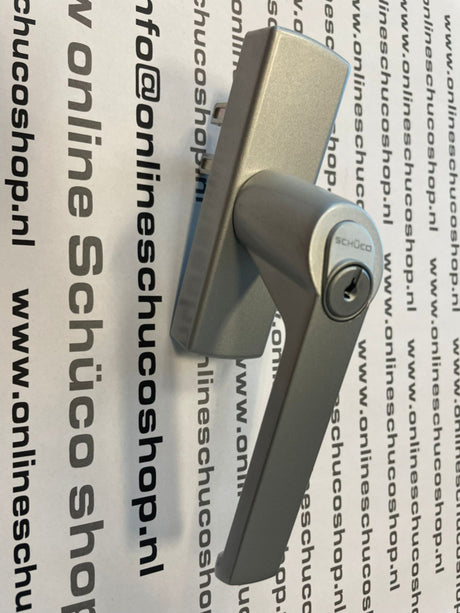

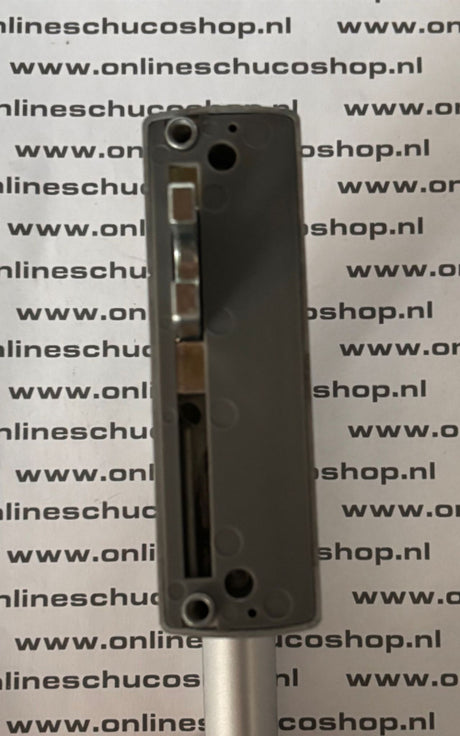

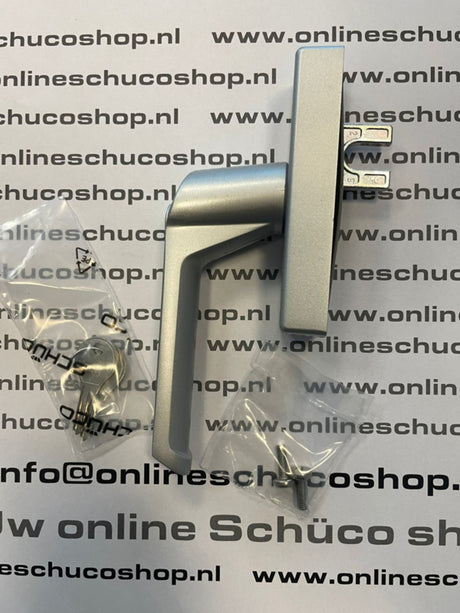

Lockable handle

214789  was 214255 or 214246

214785 was: 269509

13

Follower

208227

14

Locking piece

208574 was:207614

15

Locking roller

243047 was 208229

16

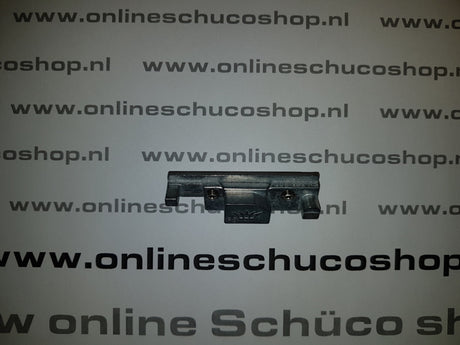

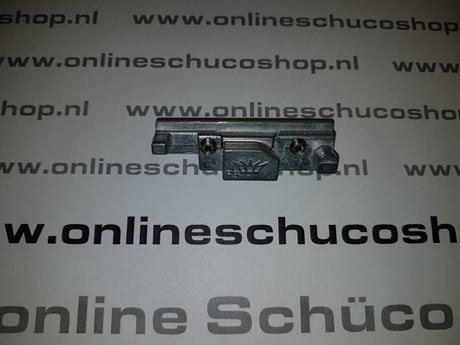

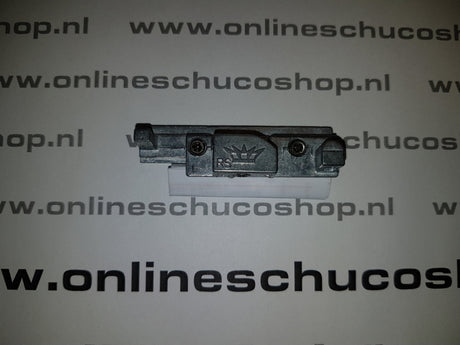

Locking piece with bolt

208232

208231

17

Bottom corner connector

276674 was 213597

18

Bearing

207934

19

Coupling

218302 was 208304

20

Filler piece

208548

21

Locking block

208352

208351
