AvanTec - Tilt-only for side-hung window

System overview:

In the table, the first column shows a number, which refers to the number in the drawing to clearly indicate which part is meant.
LH = Left-hand hung (viewed from the side you open the element towards you.)
RH = Right-hand hung (viewed from the side you open the element towards you.)

Click directly on the article number in the table to go directly to the order page for that item.

Fig. no	Part	LH	RH

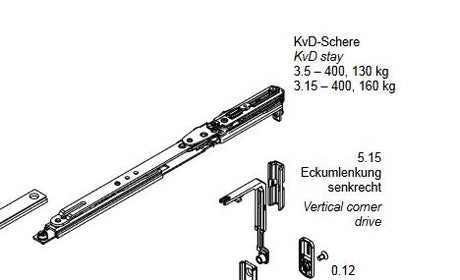

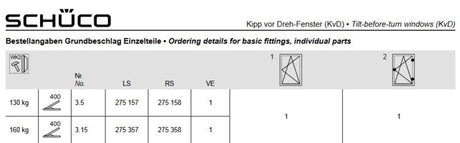

3.5	Scissor stay 400 mm max 130 kg	275157	275158
3.15	Scissor stay 400 mm max 160 kg	275357	275358
6.1	Gearing 23 mm	243033	243034
6.2	Gearing 43 mm	243037	243038
1.2	Bottom corner - hinge side 130 kg	275007	275008
1.6	Bottom corner - hinge side 160 kg	275173	275174
7.5	Bottom run-up block - handle side	243079	243080
9.1	Control piece with locking	243049	243050
10	Support block	218051	218051

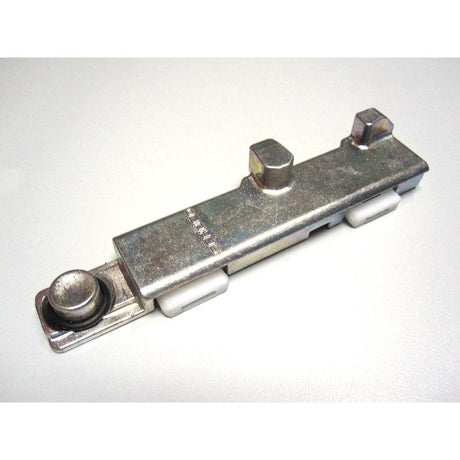

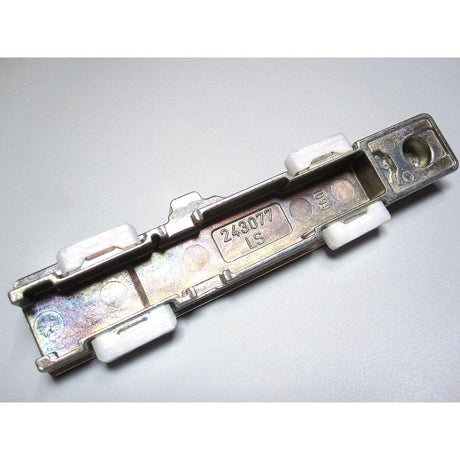

11.4	Finger stay	243077	243078
5.1	Corner connector with anti-mishandling device	243027	243027
5.2	Corner connector - under handle side alternative	243028	243028
5.15	Top corner connector - hinge side	248925	248925
8.1	Roller cam	243047	243047
6.9	Drill protection	233921	233921
9.2	Adjustable control piece	275099	275099
64.3	Tilt before turn kit 160 kg	275005	275005
0.12	DK RH 2 kit	243953	243953
0.16	Additional locking WK 2	243066	243066
